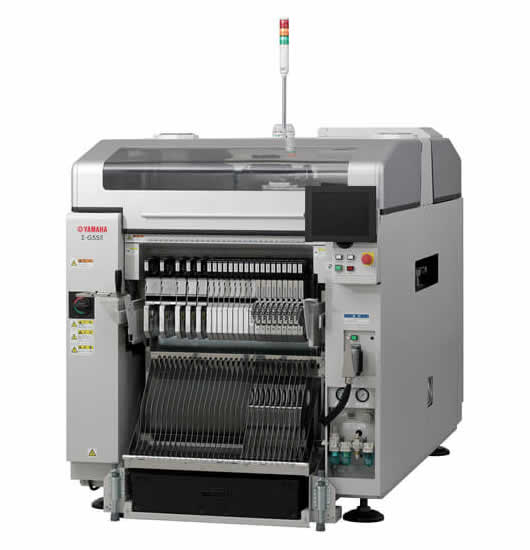

Sigma Σ-G5S II Pick and Place Machine
90,000cph
(2 Beam)
03015
72 x 72mm x 25.5mm
parts
parts
Direct Drive
Rotary Heads
15µ
Accuracy
Features
Compact premium modular mounter featuring “1-head solution” with rotary head for high throughput & accuracy.
SIGMA Overdrive allows each head to share resources making programing easy and more cost effective. Each head can even pick from the others feeders.
Designed to minimize maintenance, down time is reduced or even taken offline with the use of linear motors, swappable cutter and nozzle stocker units.
Save with SIGMA’s lower cost of ownership. Reduce feeder inventory with flexible feeders. These 3 feeders cover 6 different component widths 12/16mm, 24/32mm, 44/56mm.
Specifications
| Model | Sigma Σ-G5S II |
| Applicable PCB | Single lane: L610 x W510mm to L50 x W50mm (Optional: L1,200 x W510 to L50 x W50mm) Dual lane: L610 x W250mm to L50 x W84mm (dual feed) L610 x W415mm (single feed) |
| Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) |
High-speed Head: 0201/03015: ±25 μm/80,000 CPH 0402: ±36 μm/85,000 CPH 0603: ±40 μm/90,000 CPH Flexible Multi (FM) Head ± 15μm |
| Applicable components |
High-Speed Multi (HM) Head 0201 to L44 x W44 x H12.7mm or under Flexible Multi (FM) Head 1005 to L72 x W72 x H25.4mm or under Connector: 150 x 26mm |
| Number of component types | 120 types max. (8 mm wide tape equivalent) |
| Power supply | 3-phase AC200 V ±10 %, 50/60 Hz |
| Air supply source | 0.45 to 0.69MPa (4.6 to 7 kgf/cm2) |
| External dimension |
L1,280 x W2,240 x H1,450mm |
| Weight | Approx. 1,800kg |
