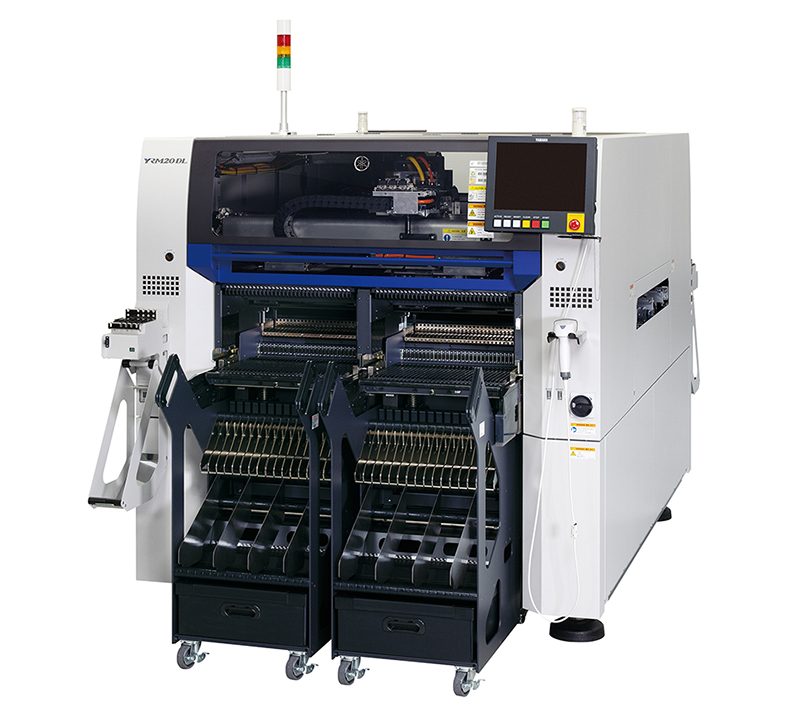

YRM20DL Surface Mount Technology | Dual Lane High Efficiency Mounter
120,000CPH
Throughput
0201 Metric
55x100mm x 15mm
parts
parts
High-Accuracy
±0.015mm Cpk≧1.0
Overdrive
Σ technology
Features
1 head solution provides broad-range production capability.
Solution for variable-mix, variable volume production.
High accuracy mounting and steady production of micro components.
High-efficiency production with various features.
Specifications
| Model | |||
|---|---|---|---|
| Super high-speed rotary RM head | High-speed general-purpose in-line HM head |
Odd-shaped components in-line FM (flexible-multi) head |
|
| Nozzles (per 1 head unit) | 18 | 10 | 5 |
| Applicable components | 0201mm to W12 x L12mm Height 6.5mm or less |
0201mm to W55 x L100mm Height 15mm or less |
03015mm to W55 x L100mm Height 30mm or less |
| Mounting capability (during high-production mode) |
120,000CPH (under optimum conditions) |
100,000CPH (under optimum conditions) |
35,000CPH (under optimum conditions) |
| Mounting accuracy (during high-precision mode) |
±0.015mm Cpk≧1.0 (under optimum conditions) |
±0.035mm Cpk≧1.0 (under optimum conditions) |
|
| Number of component types | Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) Fixed plate : Max. 128 types (conversion for 8mm tape feeder) Trays: 60 types (maximum when equipped with eATS30 x 2) |
||
| PCB dimensions | Dual-stage specifications Single use : L50 x W50mm to L810 x W610mm Dual use : L50 x W50mm to L810 x W330mm |
||
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | ||
| Air supply source | 0.45MPa or more, in clean, dry state | ||
| External dimension (excluding projections) |
L1,374 x W1,948 x H1,445mm | ||
| Weight | Approx. 2,550kg (Main unit only) | ||
Specifications and appearance are subject to change without prior notice.
