Introduction of Gateway HMI Beijer Electronics products
Introduction of powerful tool (HMI made by Beijer Electronics) that realized IIoT on the device equipped with Yamaha Robot.

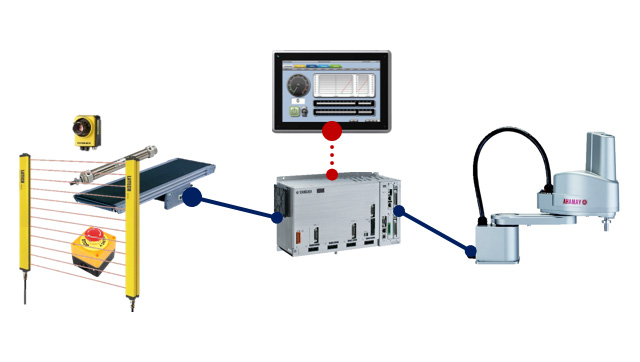

01Direct connection with the Yamaha robot controller
It can be connected easily with the robot controller using just one LAN cable. Cost down is possible as the single device without using PLC.
*Controllers that can be connected directly as of June 2018
Serial communication connection: RCX221, RCX222, RCX240, RCX320, RCX340
LAN connection: RCX320, RCX340, YAC100
02Connection with major PCL vendors in each country
Able to connect with major PLC vendors in each country. Data exchange is possible through HMI.
Allen-Bradley, Beckhoff, Keyence, Mitsubishi, Omron, Siemens
03Support OPC-UA
In addition to the existing Modbus, it supports OPC-UA that is the standard protocol of Industry 4.0. Seamless connection with the devices and PLC of different vendors, and data exchange becomes possible. Ready for expandability to support IIoT.

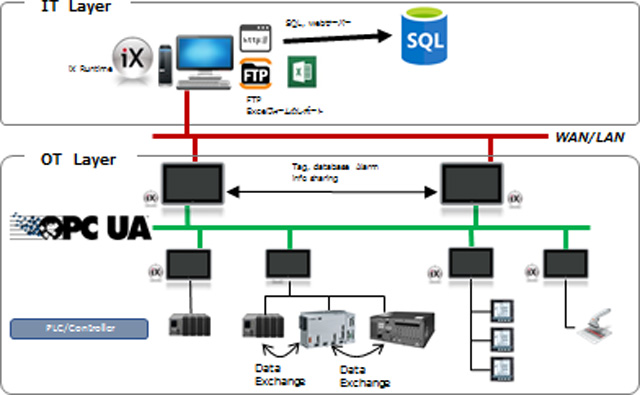

04Data exchange with the IT layer.
It supports the linkage with the IT layer that is important for IIoT, and data communications. It supports automatic report creation with SQL database and Excel format, and FTP servers and web servers.

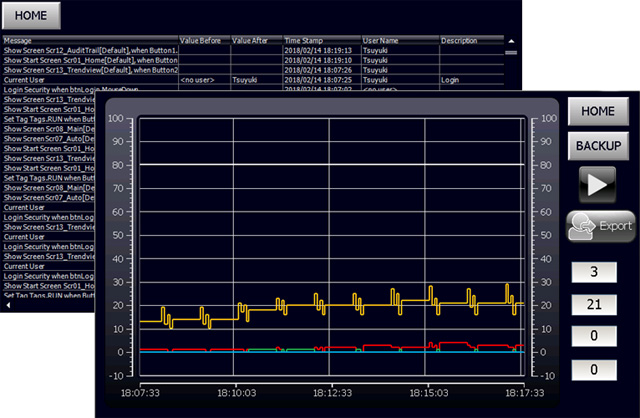

05Audit tracking function
The audit tracking function that enables verification on information such as what operation was conducted by who and when comes as standard. It can be used when performing cause analysis on defects and providing feedback during operator education. The function is important for improving the general facility operation rate.
06Display and saving of data log necessary for prediction maintenance
Data such as the robot’s operation status, cycle time, etc. necessary for prediction maintenance can be displayed in real time and made to the database.

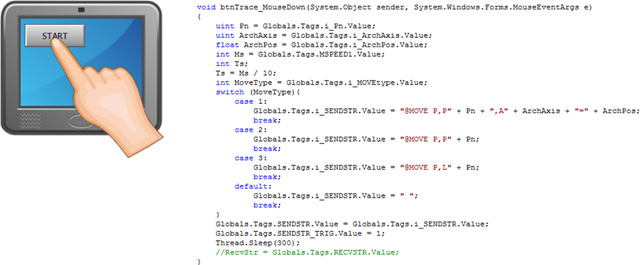

07Function customization with C#
It is possible to directly write and execute powerful C# in the HMI system, and the freedom level of function customization expands infinitely. .Net component can be imported and used. Since existing programs can be utilized, it contributes to early launch of the device.

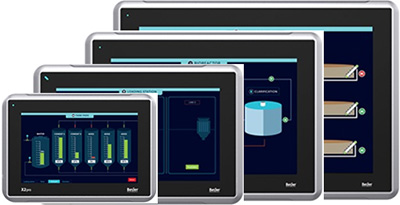

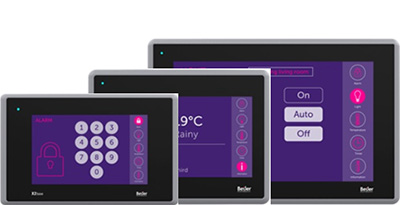

Specification
 |
 |
|
|---|---|---|
| X2 base | X2 pro | |
| Display size | 5",7",10" | 7",10",12",15" |
| Dimensions [mm] | 170×107×49（5"）, 196×146×52(7"), 284×187×52(10") | 204×143×50（7"）, 292×194×52(10"), 340×242×57(12"),410×286×61(15"), |
| Cut size [mm] | 161×93（5"）, 186×136(7"), 275×177(10") | 189×128（7"）, 275×177(10"), 324×226(12"),394×270(15") |
| Screen resolution [pix] | 800×480 | 800×480（7"）, 1024×600(10"), 1280×800(12",15") |
| Input voltage | 24VDC (18 to 32VDC) | |
| CPU | ARM9 400 MHz | i.MX6DualLite,Dual Cortex-A9 1.0GHz |
| RAM | 128MB | 512MB(7"), 1GB(10",12",15") |
| Flash ROM | 256MB (User usable: 200MB) | 2GB (User usable: 1.5GB) |
| Serial port | 2 ports RS232/RS422/RS485 | 1 port RS232/RS422/RS485 |
| Ethernet port | 1 port: 10/100 Base-T (Shield RJ45) | 2 ports: 10/100 Base-T (Shield RJ45) |
| USB | 1×USB 2.0 500ｍA | 2×USB 2.0 500ｍA |
| SD Card | - | SD / SDHC |
| Operation guaranteed temperature | -10 to +50℃ | -10 to +60℃ |
| Storing temperature | -20 to +60℃ | -20 to +70℃ |
| Storing humidity | 5％-85％ non-condensed | |
| Shock resistance | 15G half sign pattern, 11ms (IEC60068-2-27) | |
| Vibration resistance | 1G (IEC60068-2-6) | |
| IP protection level (screen) | IP65 | |
| IP protection level (case) | IP20 | |
| Certifications | CE, FCC, KCC, UL 61010-2-201 | |
