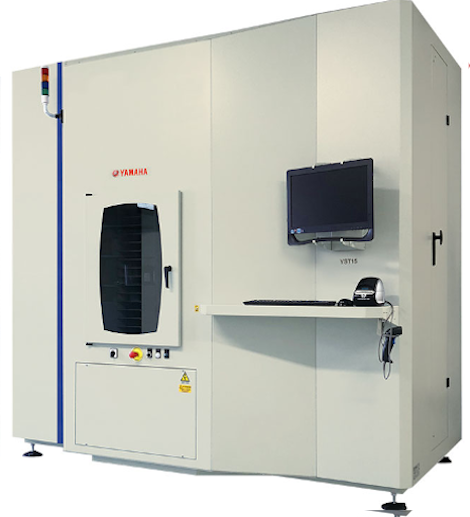

YST15 Surface Mount Technology | SMD Storage System
Load and unload
Up to 33 reels in 1 batch,
1500 reels in one unit.
1500 reels in one unit.
Increase
Efficiency
Efficiency
With intelligent
component supply.
component supply.
Centralized
Parts management linking
up to 99 units.
up to 99 units.
Monitoring
and humidity
and humidity
Control to protect
components.
components.
Features
Achieved automation of storage and refill management for surface mounter components-can now monitor a max. of 1,500 reels and load and unload a max. of 33 reels in one batch.
Vastly boosts efficiency by cutting down on the time and trouble for component supply
Smart component and refill functions
Compound effect from linking different functions helps cut work-task losses
Specifications
| Model | YST15 | YST15 wide type | ||||
|---|---|---|---|---|---|---|
| Type | Small | Standard | Mix | Wide 1 | Wide 2 | |
| Storage capacity | No options available | 7 inches : 1500 pieces | 7 inches : 900 pieces 13 to 15 inches : 200 pieces Total 1100 pieces |
7 inches : 635 pieces 13 to 15 inches : 265 pieces Total 900 pieces |
13 to 15 inches : 525 pieces (tape width 12 to 16mm) |
13 to 15 inches : 400 pieces (tape width 24 to 32mm) |
| Extension option | 7 inches : 500 pieces | 7 inches : 500 pieces | 7 inches : 500 pieces or 13 to 15 inches : 165 pieces |
13 to 15 inches : 165 pieces | 13 to 15 inches : 121 pieces | |
| Max. number of reels entered/retrieved from stock in one batch | 7 inches : 33 pieces | 7 inches : 16 pieces, 13 to 15 inches : 8 pieces Total 24 pieces |
7 inches : 16 pieces, 13 to 15 inches : 8 pieces Total 24 pieces |
13 to 15 inches : 8 pieces | 13 to 15 inches : 8 pieces | |
| Maximum conveyable reel weight | 1.5kg | |||||
| Maximum tape width | 24mm | 32mm (44mm and more per factory options) | ||||
| Humidity management function | Standard equipment | |||||
| Maximum manageable units | Centralized management linking a maximum 99 units Note : Use of separate PC recommended when linking 4 or more units | |||||
| Main accessories | Touch panel, 2D label printer, 2D scanner, Mounter linked software | |||||
| Power supply | Single-phase AC 200 to AC 230V +/-5% | |||||
| External dimension (excluding projections) |
No options available | L2,590 x W1,350 x H2,470 | L2,590 x W1,510 x H2,470 | |||
| With extension option | L2,590 x W1,350 x H3,220 | L2,590 x W1,510 x H3,220 | ||||
| Weight | 1,100kg (1,500kg if extension option is selected) | |||||
