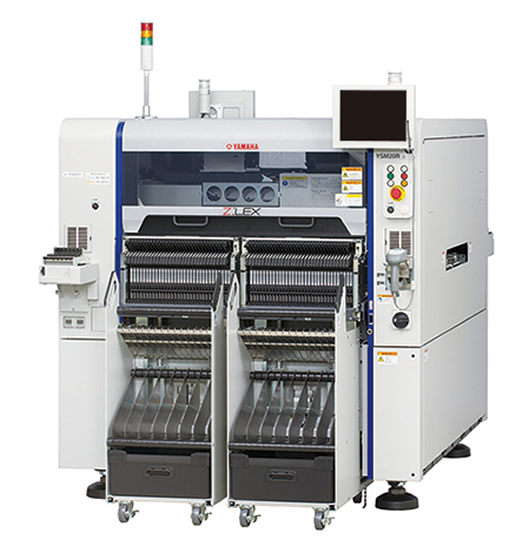

YSM20R - Z:LEX Surface Mount Technology | SMT Manufacturing Mounter
95,000cph
(Dual Beam)
0201 Metric
55x100mm x 28mm
parts
parts
On The Fly
Parts Scan
integrated
Side View Camera
Features
World’s fastest mounting speed in its class; 5% faster than the YSM20. Featuring a new wide-scan camera with improved component adaptability.
Optional features improving line operating rate without stopping the machine
Newly-developed Auto Loading Feeder (ALF) that revolutionizes feeding tape components by eliminating splicing and all the involved materials.
sATS30NS Auto Tray Sequencer (ATS) for nonstop tray replacement
Nonstop feeder carriage exchange system
Specifications
| Model | YSM20R - Z:LEX |
| Applicable PCB |
Single lane L810 x W490 to L50 x W50 Dual stage Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50 |
| Mounting capability | X-axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2
95,000CPH (under optimum conditions as defined by Yamaha Motor) |
| Mounting accuracy | ±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) |
| Applicable components |
High-Speed Multi (HM) Head NOTE: 0201 to W55 x L100mm (Indexing
recognition exceeding W45mm), height 15mm or less Note: Component height of 6.5mm or higher or components sizes of 12mm in in length/width or greater requires optional multi camera. Please contact us for info regarding mounting 0201 components. Odd-shaped components (FM: Flexible Multi) head: 03015 to W55 x L100mm (indexing recognitions exceeding W45mm), Height 28mm or less |
| Number of component types | Fixed plate: 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: maximum, when fitted with sATS30) and 10 types (Carriage type: maximum, when fitted with cATS10) |
| Power supply | 3-phase AC 200/208/220/240/380/400/416 V ±10 % 50/60Hz |
| Air supply source | Clean dry air of 0.45 MPa or more |
| External dimension | L1,374 x W1,857 x H1,445mm |
| Weight | Approx. 2,050kg |
