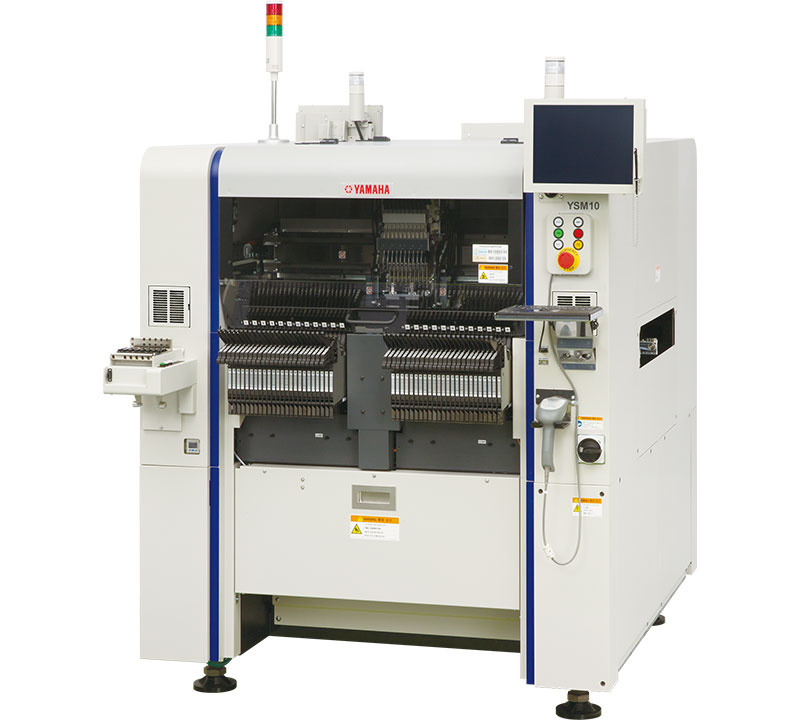

YSM10 Surface Mount Technology | Compact Mounter

46,000 cph

(Single Beam)

03015

55 x 100mm x 15mm
parts

On The Fly

Parts Scan

Integrated

Side View Camera

Features

High Speed, Multi-Functional Capable

Wide Component Range

Large FOV Scan Camera

High-End Functions:

• e-Vision

• Smart Recoognition

• Side View Camera

• Tape Cutter

• Nozzle Cleaning Station

• Auto Pick-Up Height Teaching

Model	YSM10
Applicable PCB	L 510 x W 460mm - L 50 x W 50mm Note : Available in lengths up to L950mm as an option.
Applicable Components	03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less. Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm
Mounting Capability	HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor) HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)	+/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ)
Number of component types	Fixed plate : Max. 96 types (conversion for 8mm tape feeder) ^{Note 1} Tray : 15 types (maximum when equipped with sATS15, JEDEC)
Power Supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry state

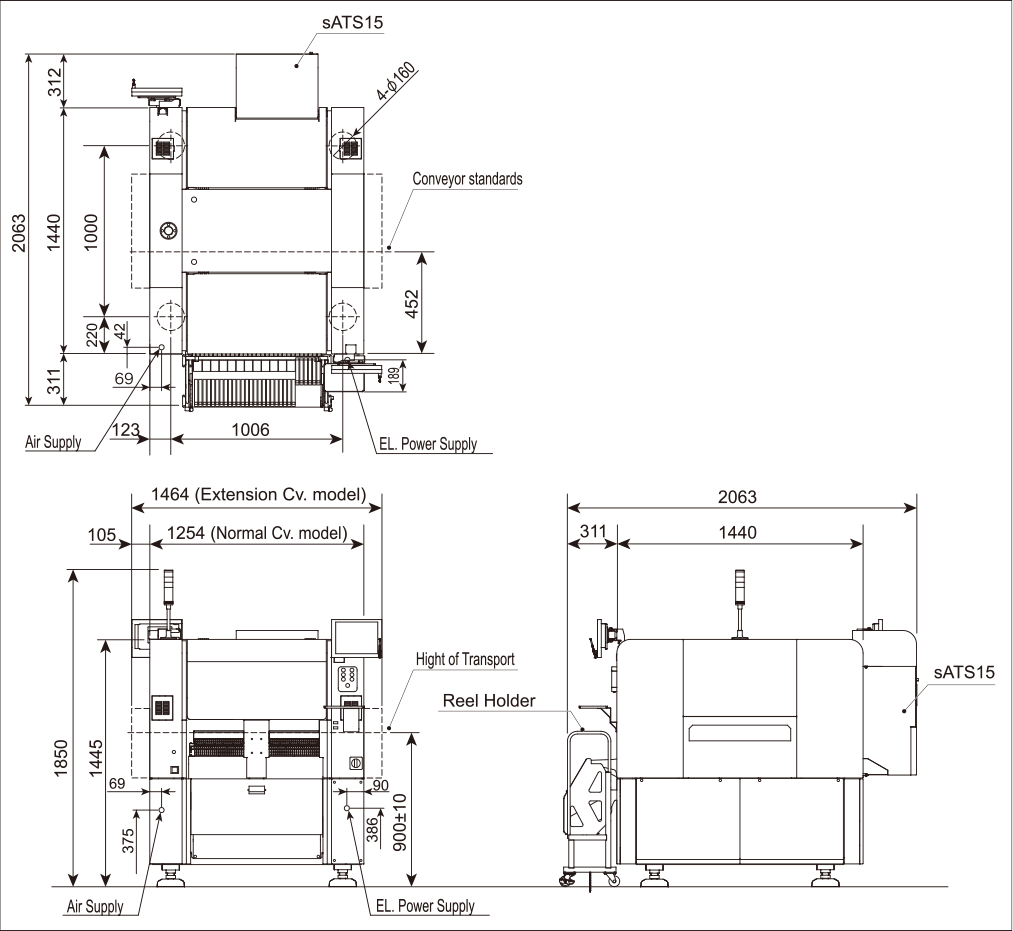

External dimension	L1,254 x W1,440 x H1,445mm
Weight	Approx. 1,270kg
Note 1 : Please consult our sales representative if you need feeder carriage specifications. Specifications and appearance are subject to change without prior notice.
