Cartesian Robots XY-XC
Highly
Sealed Structure
Use in
Electronics,
medical, food
CLASS10
(FED-STD-209D)
Cleanroom
Suitable
Data Sheets
Request Brochure

Features

Suitable for clean room electronics, food and medical related work.

Dust emission prevention through highly sealed structures.

High suction efficiency achieves both cleanliness and high performance.

Clean room labor savings through automated production systems.

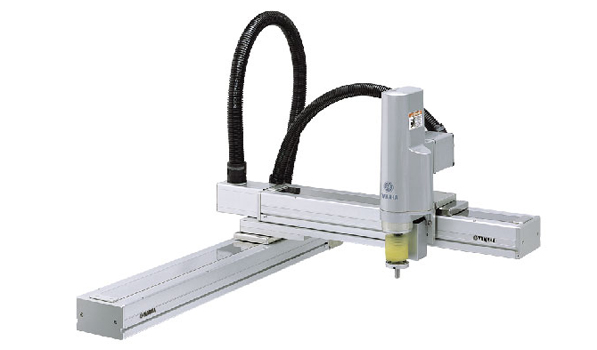

XY-XC
Clean Cartesian robots
Stainless steel sheet with superb durability is mounted on unit upper surface. Can also be used in perpendicular position.

Degree of cleanliness : CLASS 10
*Per 1cf (0.1µm base),when suction blower is used.

Intake Air：15 to 90Nℓ/min

Degree of cleanliness：CLASS10 Note

Maximum payload：20kg

Maximum speed：1000 mm/sec.

Note.
User cable D-Sub 25 pin connector (No. 1 through 24 are already connected and No. 25 is for grounding)
Note.
User tube three Φ 6 air tubes

Specifications

Clicking a desired model name allows you to see its detailed catalog.

Type Model Axis Moving range Maximun speed (mm/sec) Maximum payload (kg)
2 axes X 150 to 1050mm 1000 20
Y 150 to 650mm 1000
3 axes X 150 to 1050mm 1000 3
Y 150 to 650mm 1000
Z 150mm 1000
X 150 to 1050mm 1000 5
Y 150 to 650mm 1000
Z 150mm 500
4 axes X 150 to 1050mm 1000 3
Y 150 to 650mm 1000
Z 150mm 1000
R 360° 1020°/sec
X 150 to 1050mm 1000 5
Y 150 to 650mm 1000
Z 150mm 500
R 360° 1020°/sec
