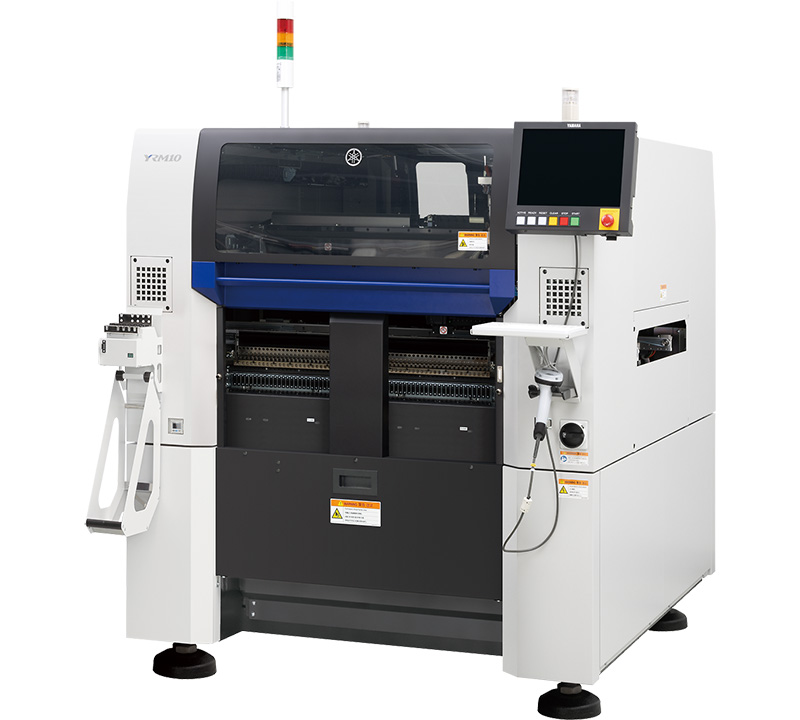

YRM10 Compact High-Speed Modular | High-speed multi-purpose in-line head
52,000CPH
Throughput
High-Accuracy
±0.035mm Cpk≧1.0
On The Fly
Parts Scan
Integrated
Side View Camera
Features
Slim and light feeder improves operability
Supports diverse PCBs with one head, achieving great productivity
Detects posture anomalies of components before mounting
Specifications
| Model | |
|---|---|
| Applicable PCB (Optionally able to support lengths up to 950 mm) |
L50 x W50mm to L510 x W460mm |
| Applicable components | 0201mm to L100 x W55mm, Height 15mm or less |
| Mounting capability (Under our optimized conditions) |
52,000CPH |
| Mounting accuracy (Under our optimized conditions) |
±0.035mm Cpk≧1.0 |
| Number of component types | Reel components : Max. 96 types (conversion for 8mm tape feeder) Tray components : 15 types (when equipped with sATS15R) |
| Power supply | 3-Phase AC 200/208/220/ 240/380/400/416V +/-10% 50/60Hz |
| Air supply source | Over 0.45 MPa, clean and dry state |
| External dimension | L1,254 x W1,440 x H1,445mm |
| Weight | Approx. 1,230kg (Main unit only) |
Specifications and appearance are subject to change without prior notice.
